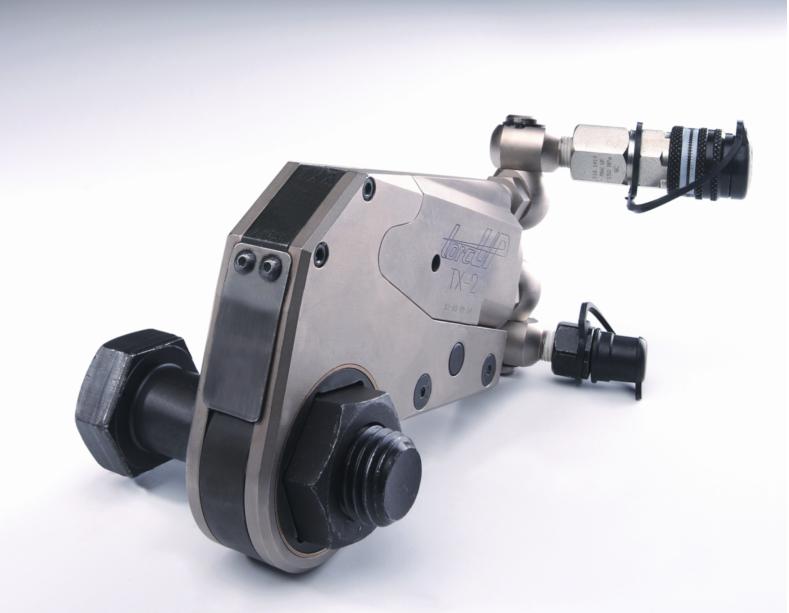

TX low profile hydraulic wrench
This slim and tough tool is a unique hydraulic wrench amongst copies, knock-offs and many older or lower quality alternatives. Put TorcUP’s TX to the test and become a fan of us! The TX is the most sturdy, advanced and easy-to-handle low profile hydraulic torque wrench that has ever been manufactured. It will meet all your expectations with these features:
TX features
- completely flat cylinder and Hex Link Design
- small radius link cassettes
- torsion resistant link design
- patented „Peanut Shaped“ piston fits where others can not
- only 3 mechanically moving parts, simple but smart design
- housing can be used for bracing the tool (no external arm needed)
- sturdy multi-tooth ratchet systemTX accessories
- never-lock torque mechanism
- quick change single pin release system (no tools required)
- multi-axis swivels for complete 360 x 360 degree adjustability
- quick-connect, no-drip, high pressure couplers

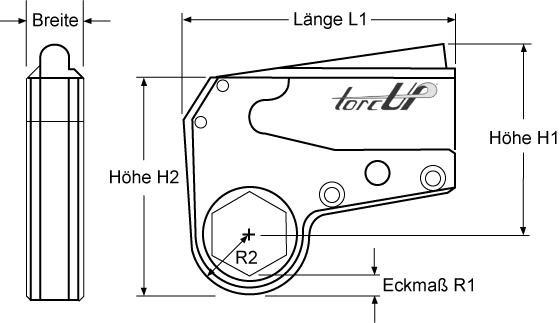

TX technical data and measurement sheat – check it out
Sizes, heights, weights and why competitor’s tools cannot compete, available hexagon sizes, center of bolt radius TX2RL – TX45RL, accessories and bolting applications with TX wrenches in use, check out the technical data of our TX series.

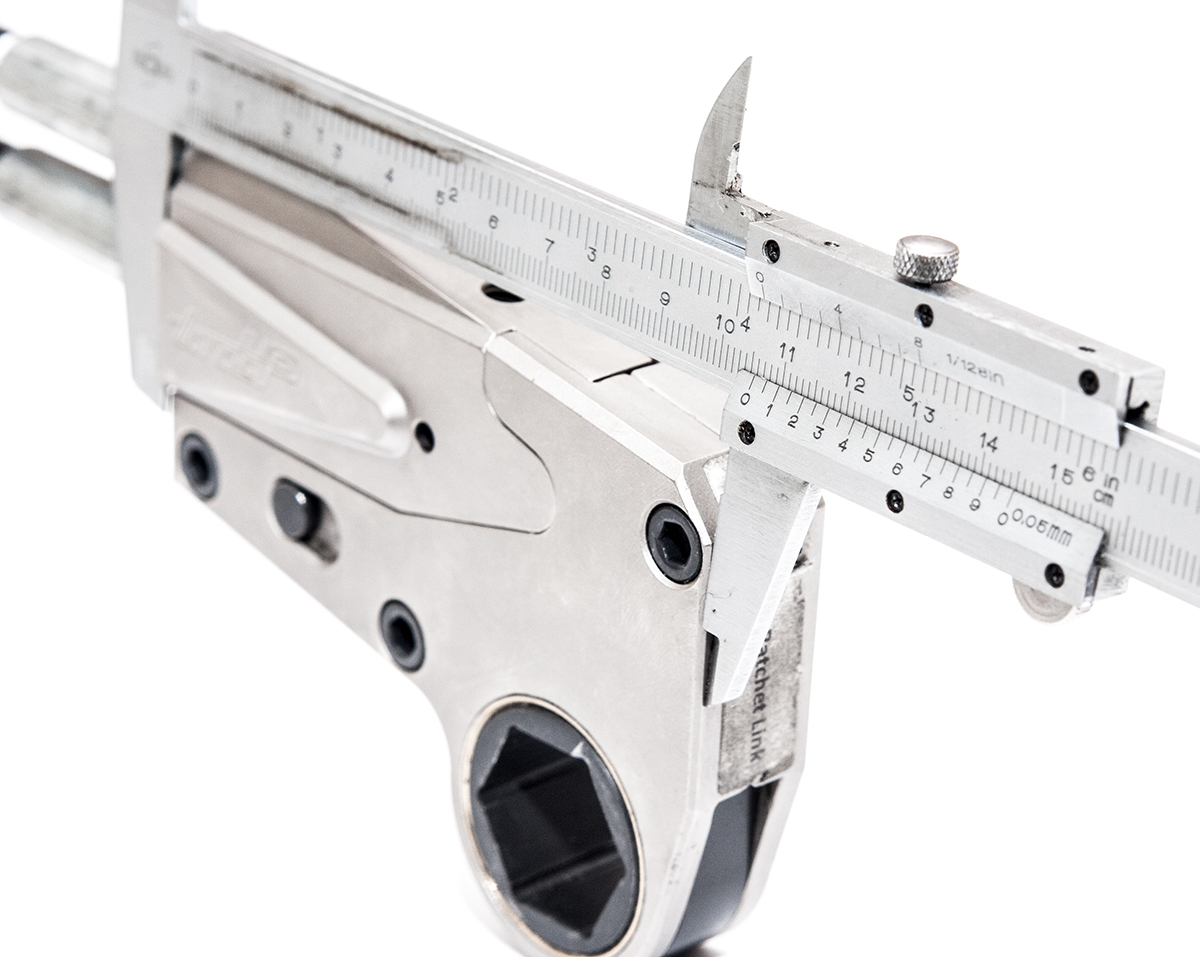

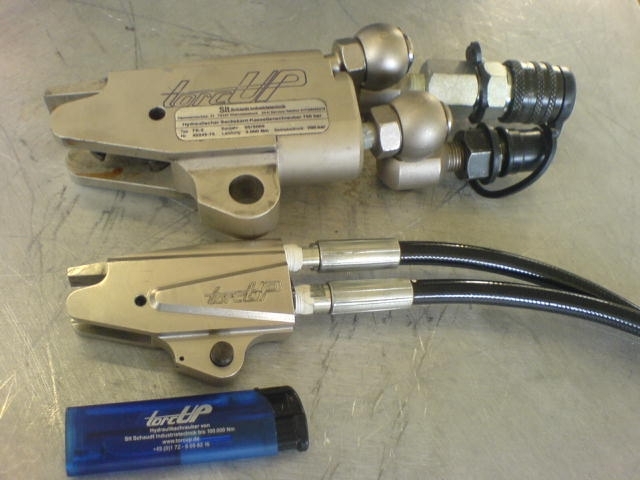

TX-1 up to 800 Nm initiated by naval industry, used in steel construction and aircraft turbines, the smallest TorcUP hydraulic wrench excels in tight and narrow places.
| model | TX-1 | TX-2 | TX-4 | TX-8 | TX-16 | TX-32 | TX-45 |
|---|---|---|---|---|---|---|---|
| max. power[Nm] | 800 | 3.000 | 5.400 | 12.000 | 23.000 | 50.500 | 65.000 |
| width across flats SW [mm] | 19-41 | 19-65 | 25-80 | 50-105 | 65-130 | 80-195 | 80-195 |
| height H 1 [mm] | 67 | 100 | 137 | 154 | 216 | 255 | 261 |
| height H 2 [mm] | 81 | 128 | 164 | 210 | 255 | 360 | 365 |
| radius R2 (at SW) [mm] | 23 (27) | 36,2 (46) | 44 (55) | 57,7 (75) | 70 (90) | 99,8 (130) | 120,2 (165) |
| radius R1 (at SW) [mm] | 7 (27) | 9,8 (46) | 11,9 (55) | 14,5 (75) | 16,5 (90) | 25,0 (130) | 25,3 (165) |
| width [mm] | 21,5 | 32 | 41 | 52 | 63 | 82 | 124 |
| length L1 [mm] | 110 | 164 | 197 | 266 | 320 | 405 | 416 |
| weight [kg] starting at | 1,1 | 2,5 | 5,1 | 10,5 | 16,8 | 24,5 | 26,0 |

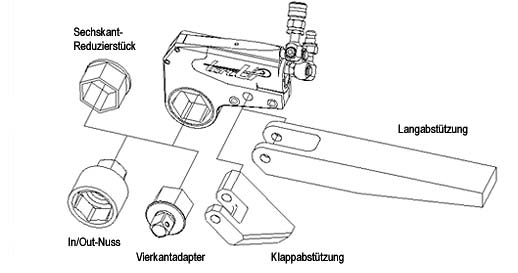

TX accessories
Complement your TX with our accessory programm. Compare it with what competitors have to offer!
Only the TX wrench works flawlessly with:
- inline reaction arm
- low point reaction paddle
- hex to square adaptor
- stack socket
- hex reducer
- allen wrench inserts
